Diagrams using extended syntax

Overview

You can describe design information by incorporating diagrams using extended syntax such as PlantUML into Markdown content.

Extended SyntaxTypes of Diagrams That Can Be Described
PlantUMLClass diagrams, sequence diagrams, use case diagrams, activity diagrams, state transition diagrams, etc.
MermaidFlowcharts, sequence diagrams, Gantt charts, class diagrams, state diagrams, etc.
GraphvizDirected graphs, undirected graphs, network diagrams, tree diagrams, etc.
Chart.jsBar graphs, line graphs, pie charts, radar charts, scatter plots, etc.
info
  • To use extended syntax such as PlantUML and Mermaid, various open source software is required.
    Please check the Installation Prerequisites and install the required software.

  • The description of the diagrams using the above extended syntax conforms to the specifications of each open source software.

Below are references, display examples, and description examples for each diagram representation.

PlantUML

References

External site: https://plantuml.com/

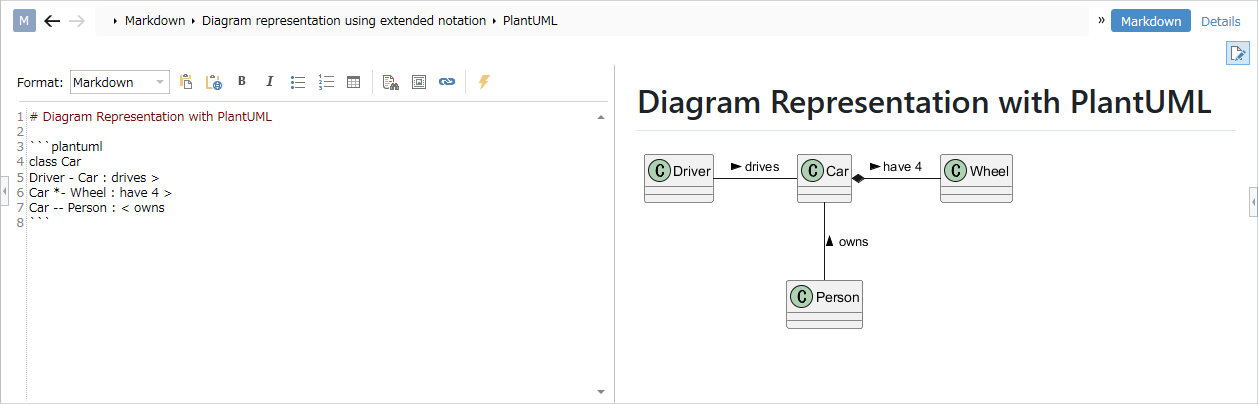

Display example

Description example

# Diagram representation using PlantUML

```plantuml
class Car
Driver - Car : drives >
Car *- Wheel : have 4 >
Car -- Person : < owns
```

Mermaid

References

External site: https://mermaid-js.github.io/mermaid/

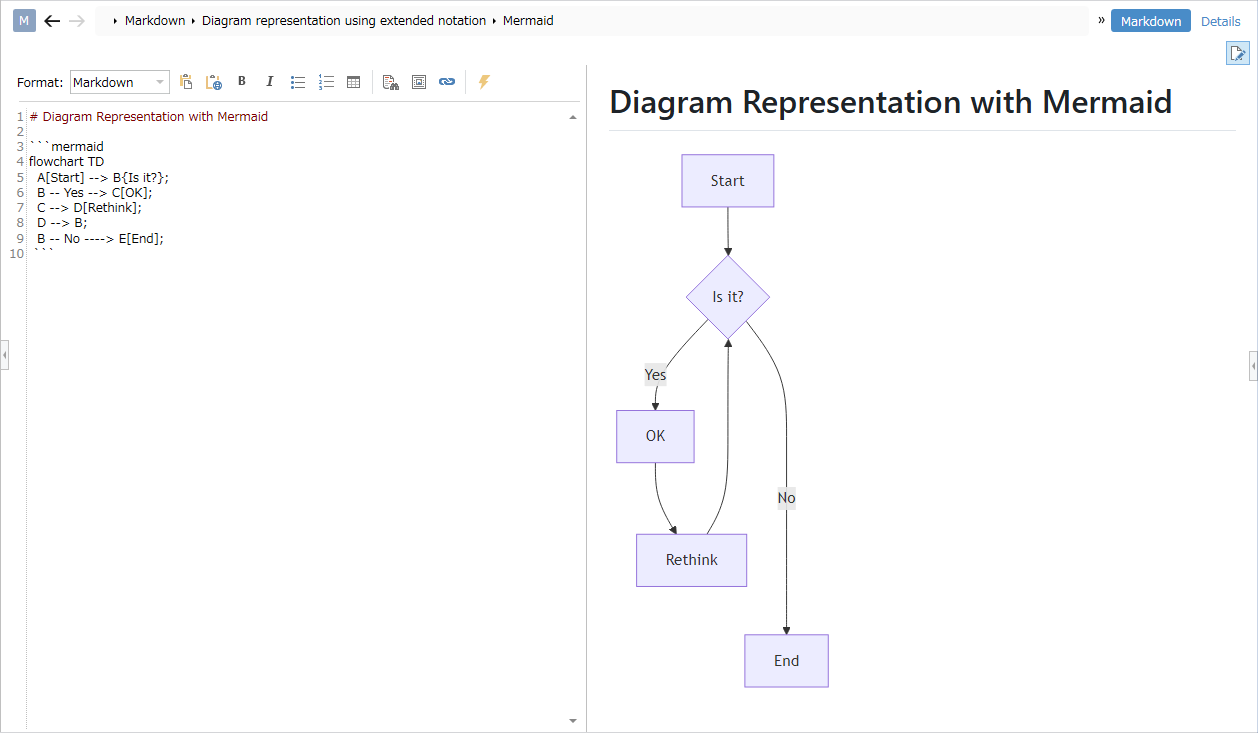

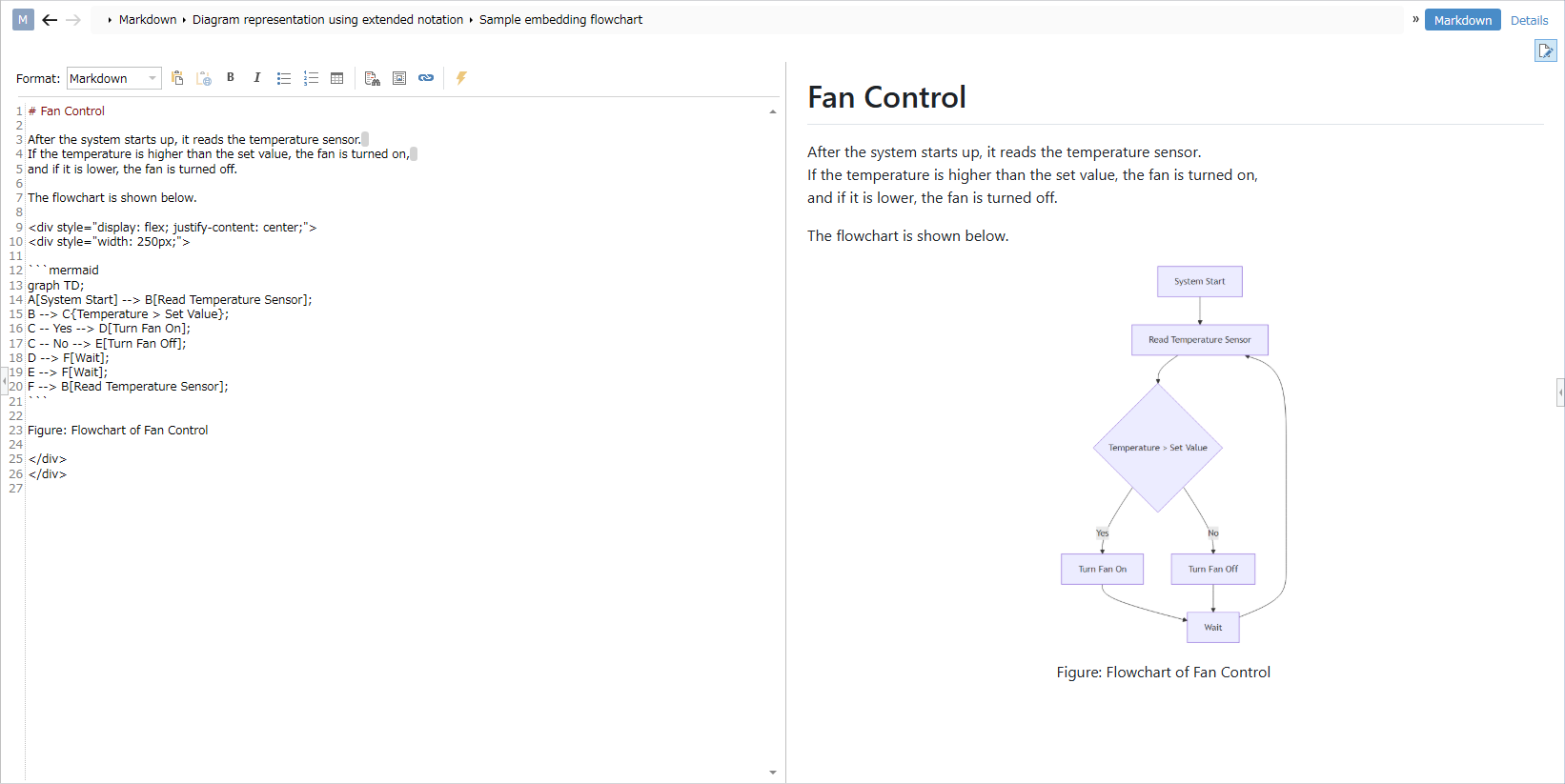

Display example

Example

# Diagram representation using Mermaid

```mermaid
flowchart TD
A[Start] --> B{Is it?};
B -- Yes --> C[OK];
C --> D[Rethink];
D --> B;
B -- No ----> E[End];
```

Graphviz

References

External site: https://graphviz.org/

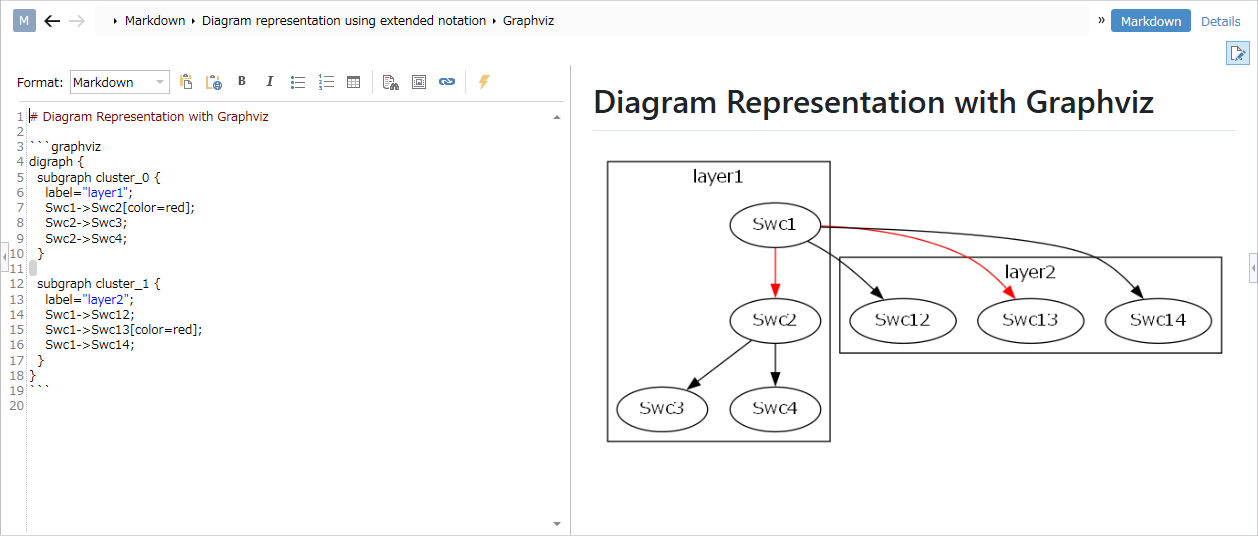

Display example

Description example

# Diagram representation using Graphviz

```graphviz
digraph {
subgraph cluster_0 {
label="layer1";
Swc1->Swc2[color=red];
Swc2->Swc3;
Swc2->Swc4;
}

subgraph cluster_1 {
label="layer2";
Swc1->Swc12;
Swc1->Swc13[color=red];
Swc1->Swc14;
}
}
```

Chart.js

References

External site: https://www.chartjs.org/

Display example

Example

# Chart representation using Chart.js

```chart
{
type: 'doughnut',
data: {
labels: ['Red', 'Green', 'Blue'],
datasets: [{
data: [10, 20, 30],
backgroundColor: ['#f88', '#484', '#48f'],
weight: 100,
}],
}
}
```
