Understanding the Overall Picture of the Process and Deliverables
To help you understand the overall picture of the software development process and deliverables (profile = metamodel + view definition) systematized in the embedded software development base package, we show representative screen images from a sample project.
Furthermore, as reference information for deeper understanding, we show document images of the expected target deliverables and the metamodel that defines their structure.
This package targets the software development domain. Regarding "System Requirements Analysis," which is part of the system development domain, only the input information necessary for "Software Requirements Analysis" has been extracted and systematized. Accordingly, the testing process for system requirements analysis is not included.
Target V-Model Process and Main Deliverables
Process | Overview | Main Deliverables |
|---|---|---|
| SystemRequirementAnalysis | Digitizes and makes traceable system requirements, which are inputs for software requirements analysis. | ・System Requirements (Input Information for Software Requirements Analysis) |
| SoftwareRequirementAnalysis | Based on system requirements, analyzes the functional and non-functional requirements that the software must satisfy. | Software Requirements |
| Software Architecture Design | Design the component configuration, interfaces, and dynamic behavior to realize the software requirements. | Component configuration and relationships Interface design Assignment of execution units (tasks/processes/interrupts, etc.) and interface functions Dynamic design (sequence diagrams, state machine diagrams, DFDs) Resource analysis |
| Software Component Design | Design the internal unit configuration, interfaces, and dynamic behavior as a detailed design of the component. | Component internal unit configuration and relationships Interface design Dynamic design (sequence diagrams, state machine diagrams, DFDs, flowcharts) |
| Software Component Test | Test that the internal unit groups and individual components conform to the detailed design. | Test execution plan and definition of scope Test cases Test results |
| Software Integration Test | Test that each individual component, and the integrated component groups, conform to the architectural design. | Same as above |
| Software Test | Tests that the entire software meets the software requirements. | Same as above |
Screen Images of Design Scenes in Each Process

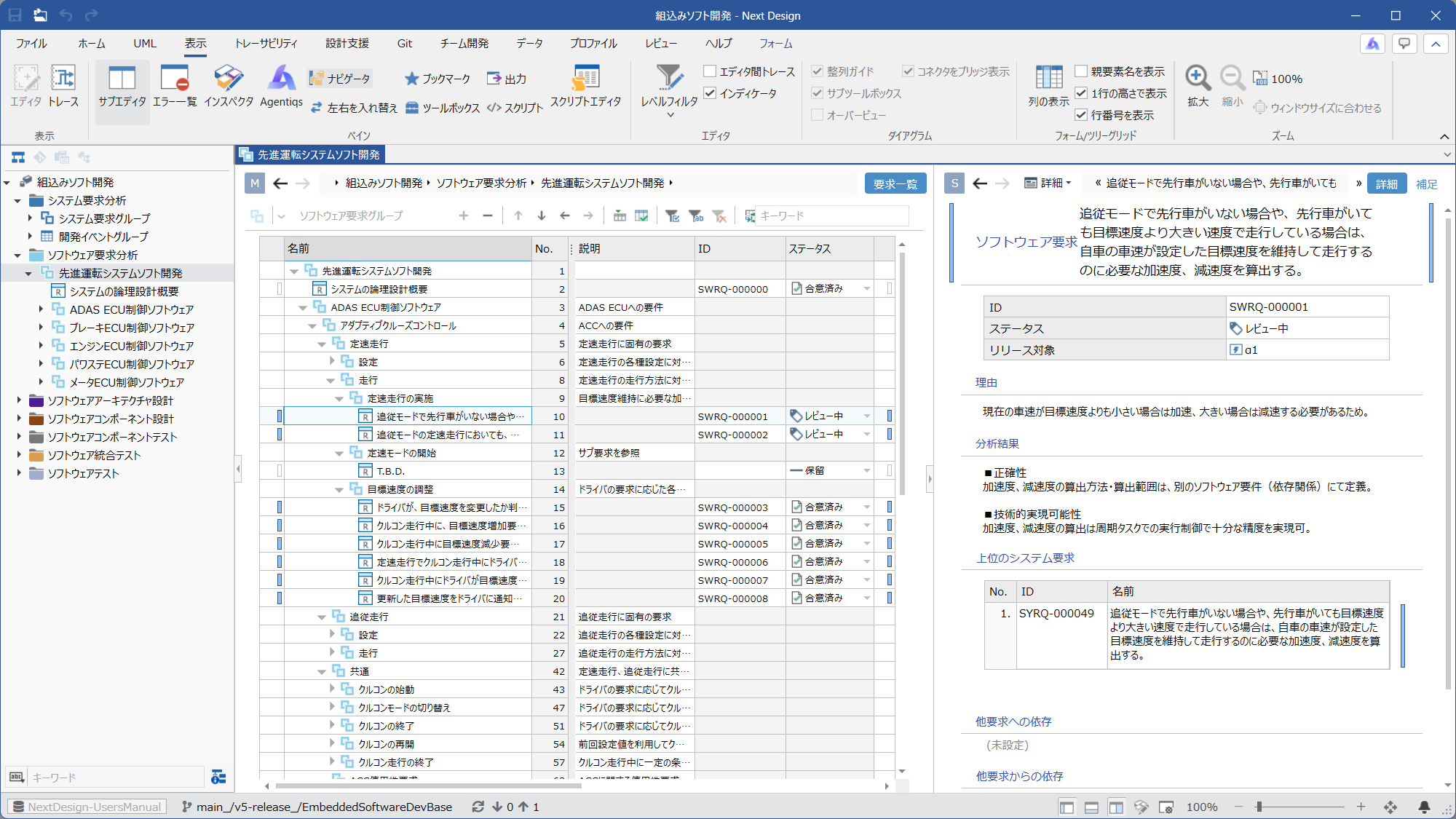

- Software Requirements Analysis

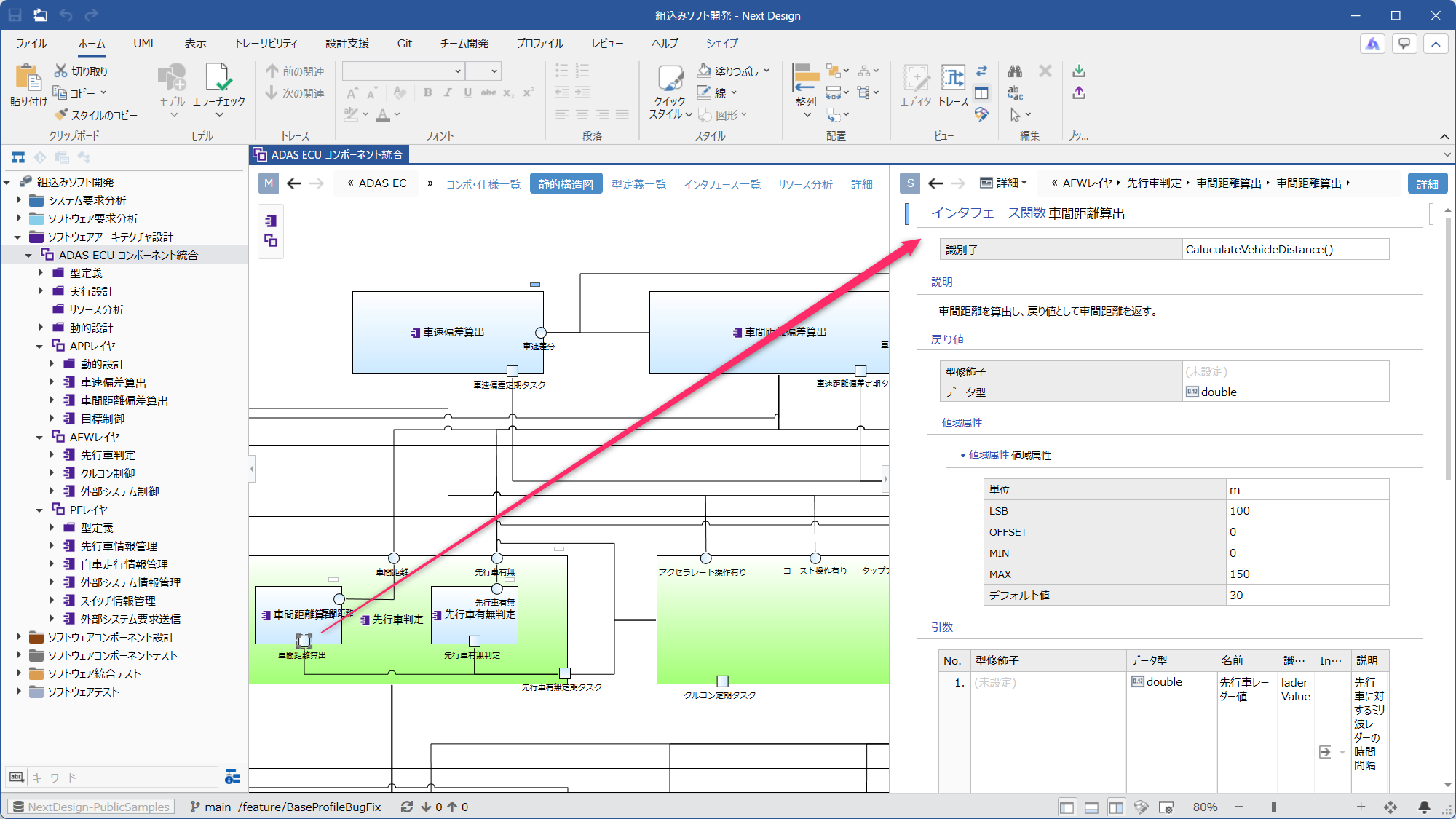

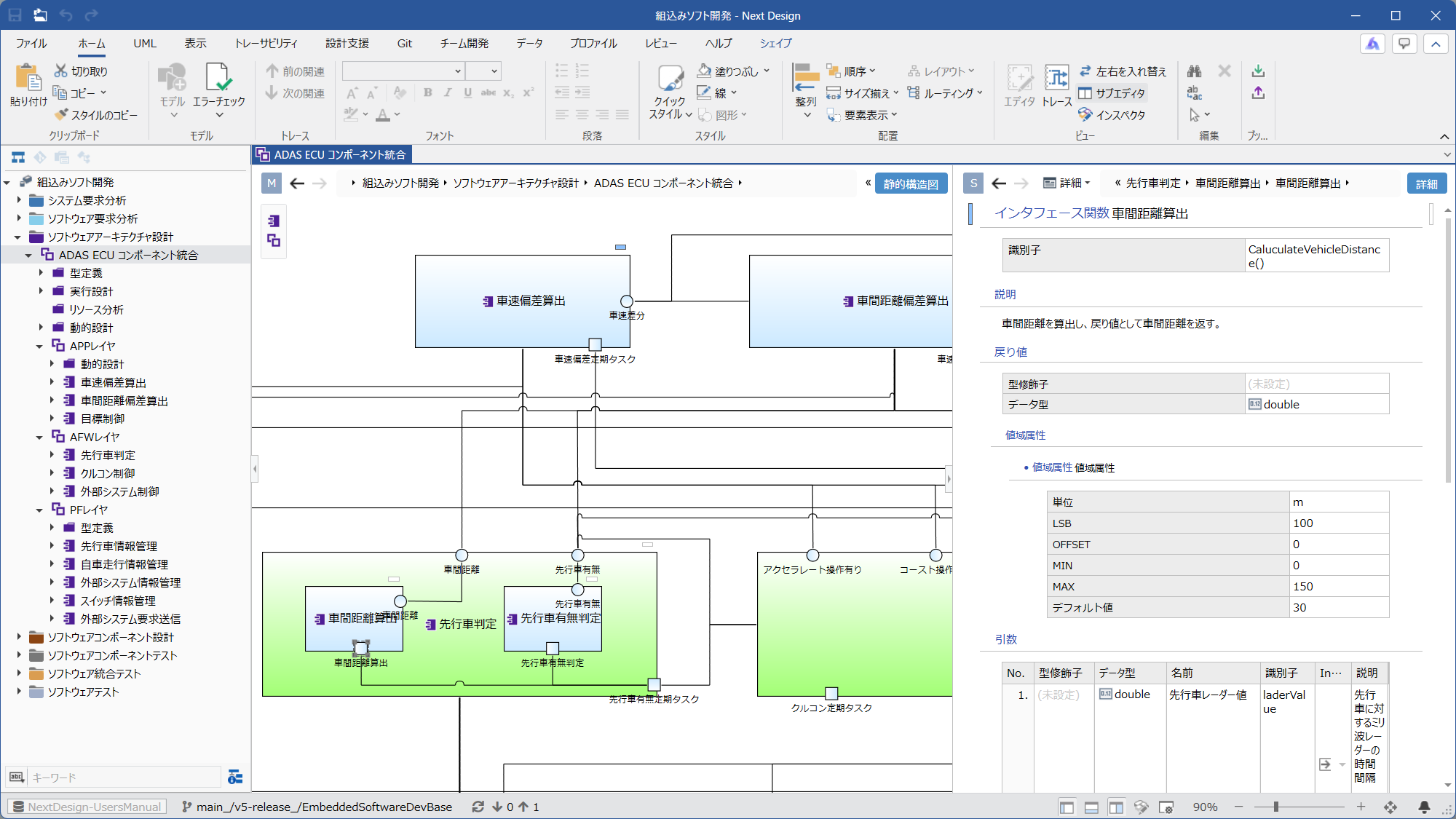

- Software Architecture Design

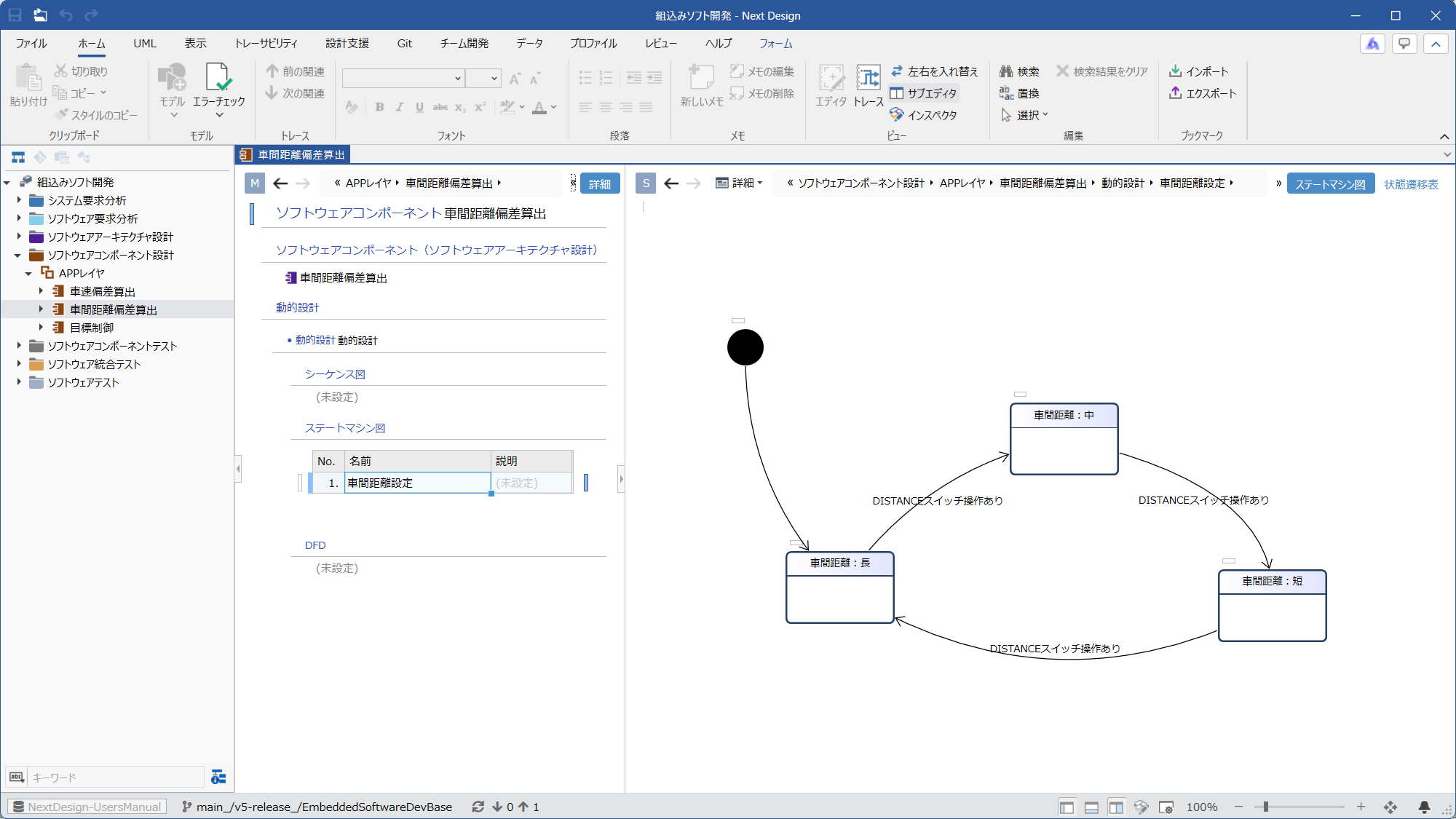

- Software Component Design

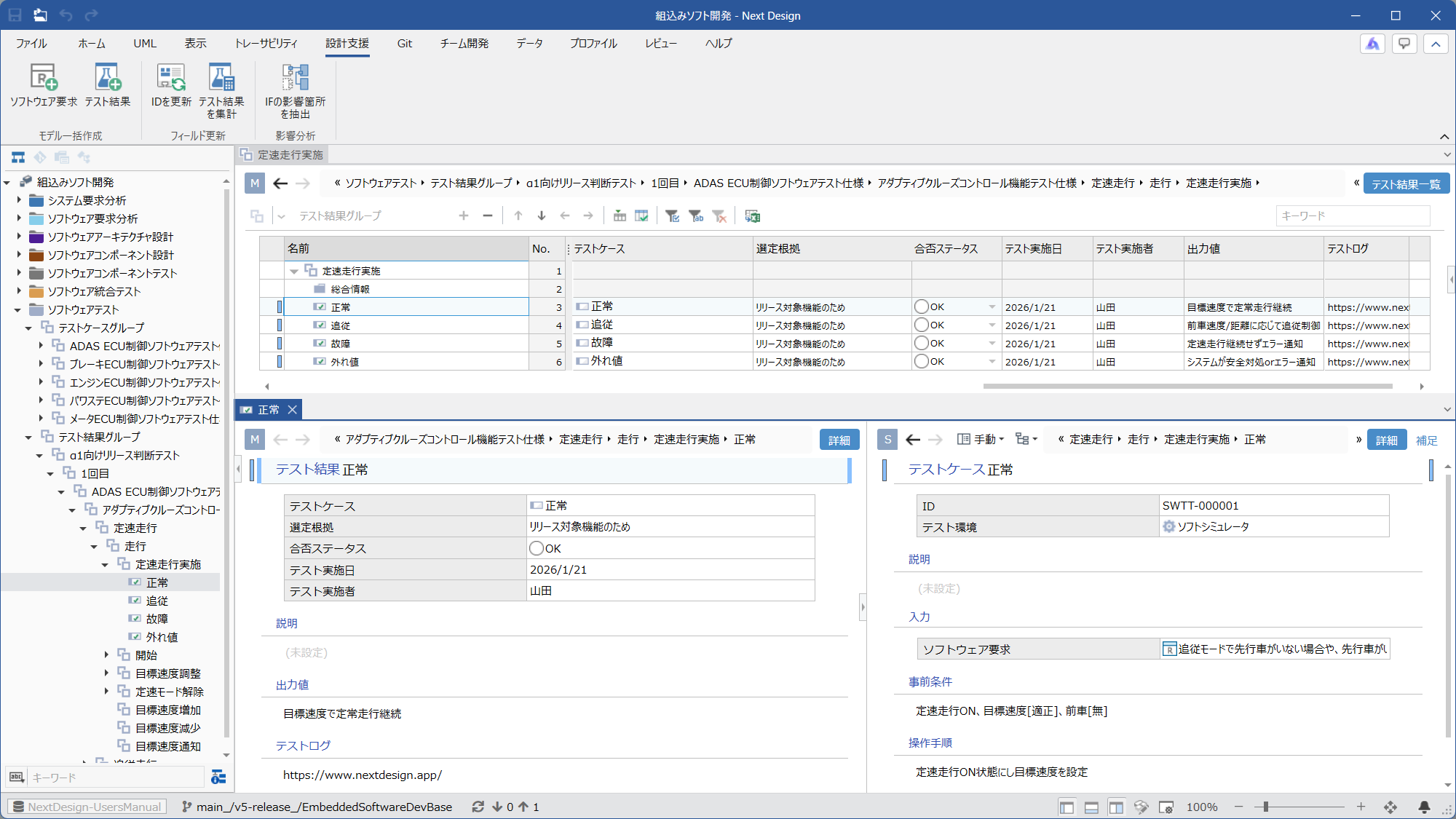

- Software Component Testing/Software Integration Testing/Software Testing
Document Images of Target Deliverables
To view document images of target deliverables assumed in this package (sample documents for digitization by Next Design), please download the files from the following link.
Location: GitHub Repository ... Japanese version files only
The above samples are intended for your reference in order to effectively utilize the target product, and no warranty is provided.
These are treated as samples under the Next Design license agreement. For details, please refer to the Next Design End User License Agreement.
Metamodel Structure
The metamodel defines the structure of the processes and deliverables systematized in this package.
To view the overall structure of the metamodel, please open the following class diagram (metamodel structure diagram) from the Profile Navigator. 1

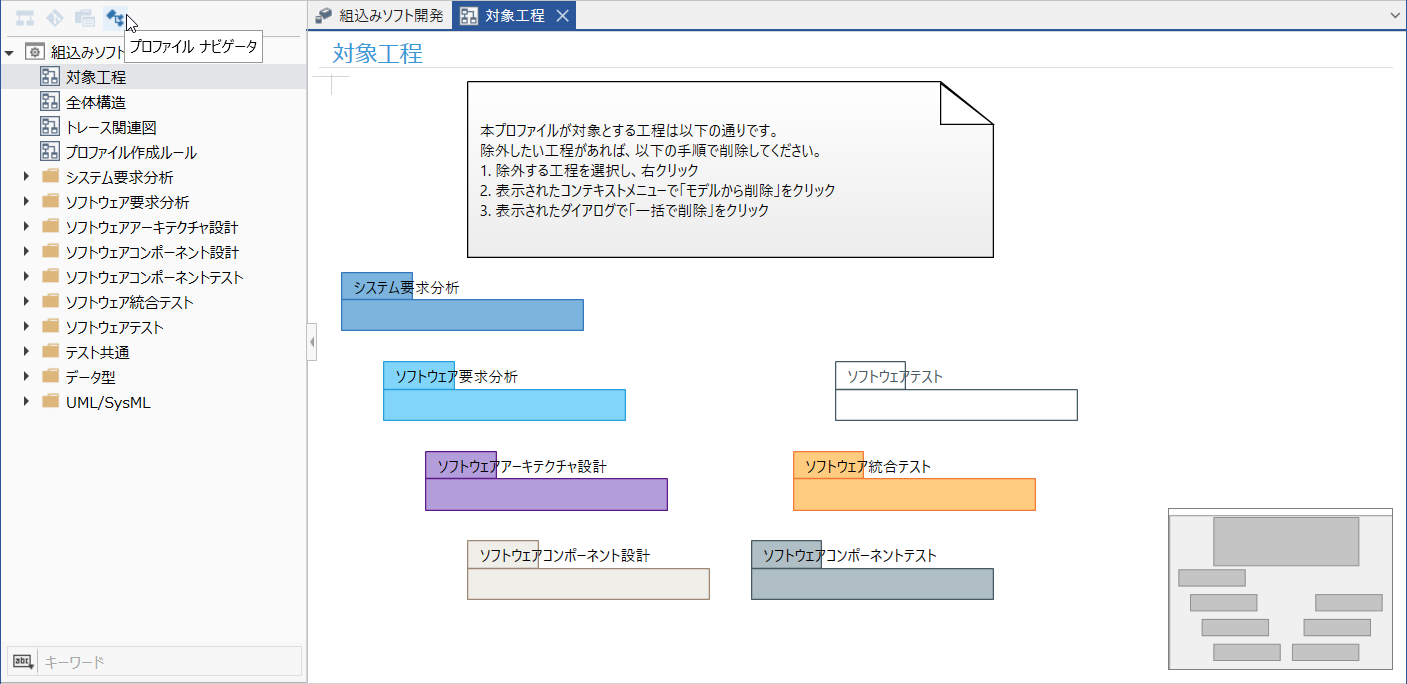

[Class Diagram] Target Process ... Explanatory diagram of the target V-shaped process- [Class Diagram] Overall Structure ... Explanatory diagram of the class structure for each process and the relationships between processes
- [Class Diagram] Trace Relationship Diagram ... Explanatory diagram focusing only on trace relationships between processes
Furthermore, please refer to the following class diagrams to see details of the metamodel for each process.
System Requirements Analysis/ [Class Diagram] System Requirements Analysis- Software Requirements Analysis/ [Class Diagram] Software Requirements Analysis
- Software Architecture Design/ [Class Diagram] Software Architecture Design
- Software Component Design/ [Class Diagram] Software Component Design
- Software Component Test/ [Class Diagram] Software Component Test
- Software Integration Test/ [Class Diagram] Software Integration Test
- Software Test/ [Class Diagram] Software Test
Footnotes
-
A license for the Architect edition is required to view the Profile Navigator and class diagrams. ↩
